Parking Assist with LED display

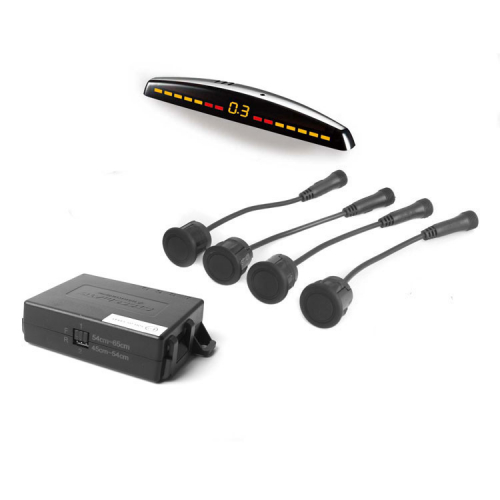

Parking assistant STEELMATE with the option to install as  Rear or Front, with 4 black sensors and Display M7Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity settinglearning function. The unit is designed for 12V/24V on board voltage cars.

System Description:

  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • sound and visual alarm indicates the position of obstacles
  • excellent coverage of the entire area behind or before the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package

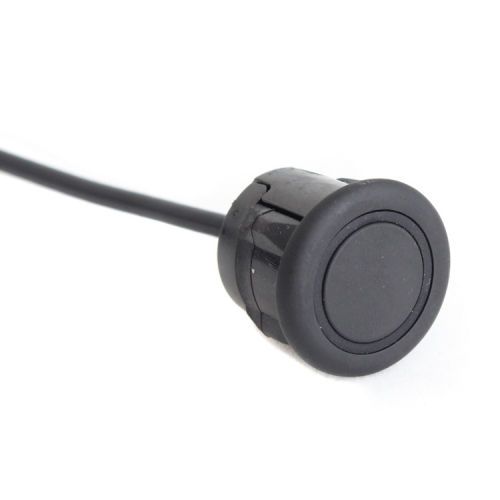

  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle – tow bar, spare wheel, frame, …)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)

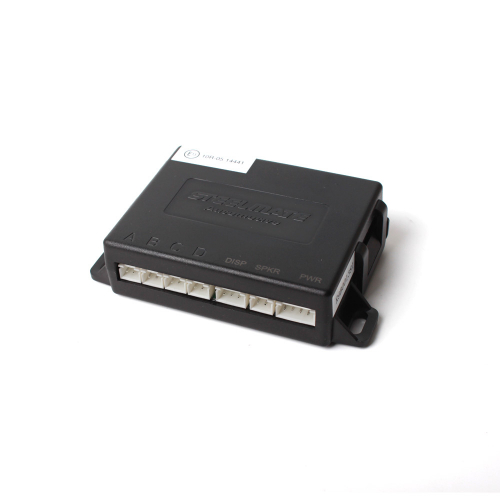

  • control unit is not waterproof, must be installed in dry place
  • length of wires to sensors 2.3m

Note: The control unit contains a 3 PIN connector for displayconnectiondisplay with old 8 PIN connector is not compatible!
