STEELMATE PTS411M21
Parking Assist with LED display

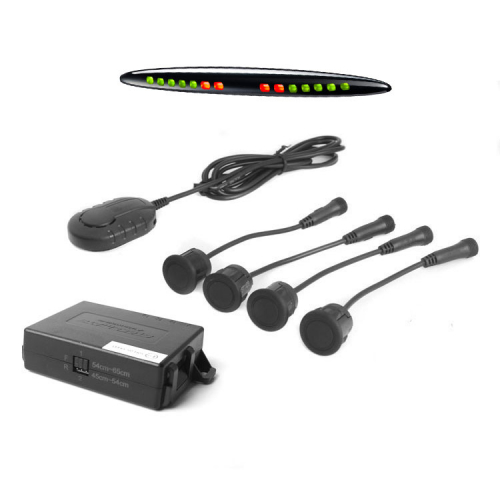

Parking assistant STEELMATE with the option to install as  Rear or Front, with 4 black sensors and Display M21. Antihook function for cars with tow-bar, spare wheel or other permanent obstacle. Functions of sensitivity setting, learning function added. Perfect performance under heavy rain environment. New features of sensitivity settings, learning function, the volume and tone adjustable directly on the buzzer body. The unit is designed for 12V/24V on board voltage cars.

System Description:

  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • visual and acoustic signalisation (beeps changing frequency) indicates the position of obstacles
  • excellent coverage of the entire area behind the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • volume and tone adjustable directly on the buzzer body
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle – tow bar, spare wheel, frame, …)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)

Technical parameters:

  • Supply voltage: 12/24V DC
  • Working power: <2.5 W
  • Detection range: 0.1 ~ 2.5 m
  • Operating temperature: -40°C to + 80°C
  • Buzzer: 70 ~ 90 db
  • Sensor diameter 18,5mm
  • Sensor wire length 2,3m

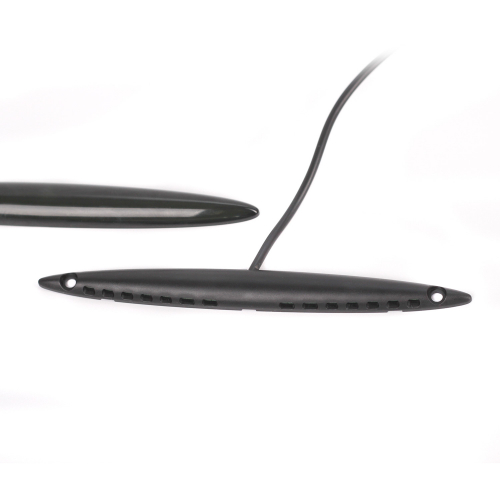

Note: The control unit contains a 3 PIN connector for displayconnection, display with old 8 PIN connector is not compatible!
