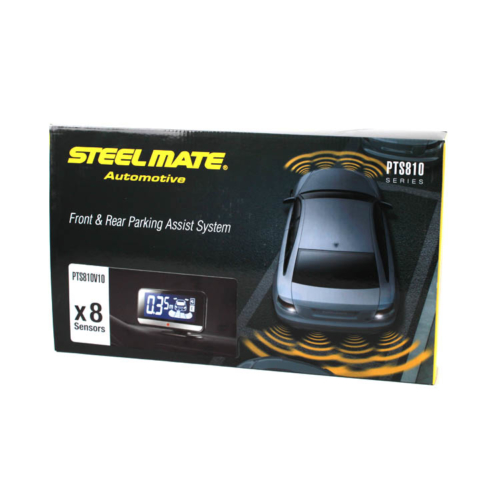

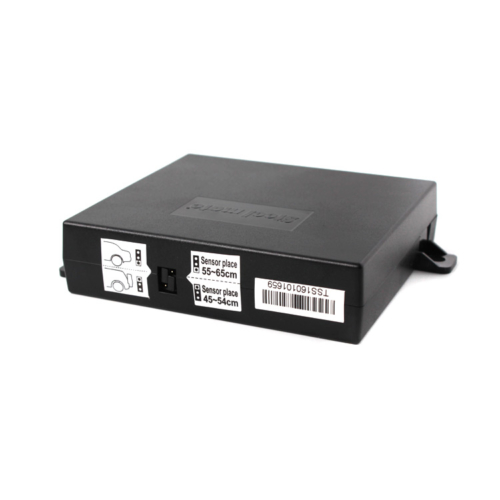

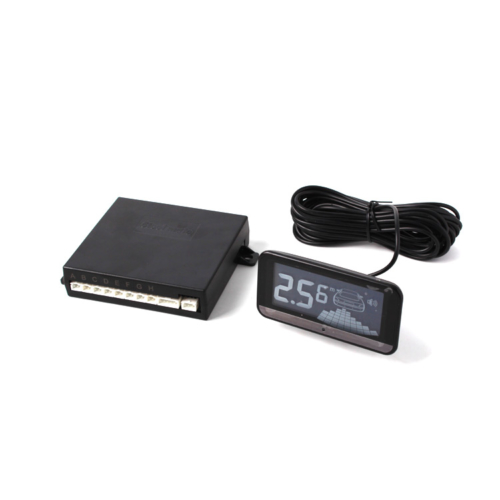

Parking assistant STEELMATE with 8 sensors, with only one control unit, designed for installation in the front and rear bumper, with V10 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).

System Description:

• acoustic, voice and visual alarm
• sensors are mounted to the rear and front bumper
• automatic detection of damage to sensors (selftest)
• if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
• Antihook function – scanning shift + 20 centimeters (spare wheel, frame …)
• sensitivity setting, in 2 levels
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers 0°, 4°, 10° in the package
• sensor core diameter 14 mm
• installation hole 18.8 mm
• sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
• supply voltage: 12V DC
• working power: <2.5W
• cover range (front / rear): from 0.3 to 1 m / 0.3 to 1.5 meters
