Parking Assist with LED display

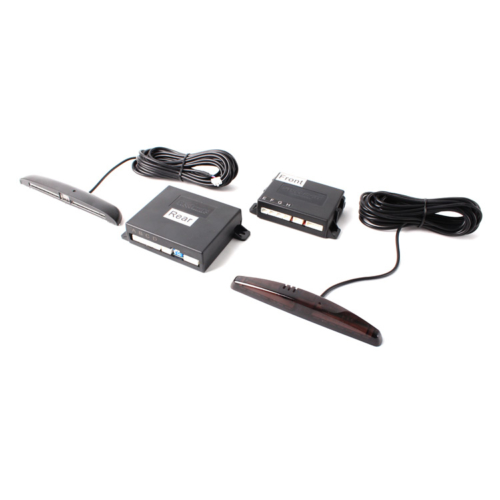

Front and rear Park Assist system STEELMATE with 8 sensors, 2 slim LED displays (M7 and M8) and automatic radio mute function. Dashboard/interior mirror/rear roof installation. New control units allow to set the sensitivity of sensors, and also to set off delay front sensors in the two levels.

Technical parameters:

  • acoustic and visual signalisation (LED diodes + number)
  • sensors are mounted in the front and back bumper
  • when the obstacle is at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • sensors sensitivity adjustable
  • off delay of the front sensors after releasing the brake pedal (8s or 20s)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • function Antihook – measuring shift +20 cm (reserve, drawing, frame, …)
  • fast obstacle detection
  • automatic detection of damaged sensor
  • supply voltage: 12V DC
  • working power: <2.5 W
  • display range: 0,3 ~ 2,5 m
  • display dimensions M7: 135x17x18 mm
  • display dimensions M8: 150x15x20 mm
  • sensor diameter 18,5mm
  • display cables lenght:  6m
