STEELMATE PTS410M5-F
Front Parking Assist

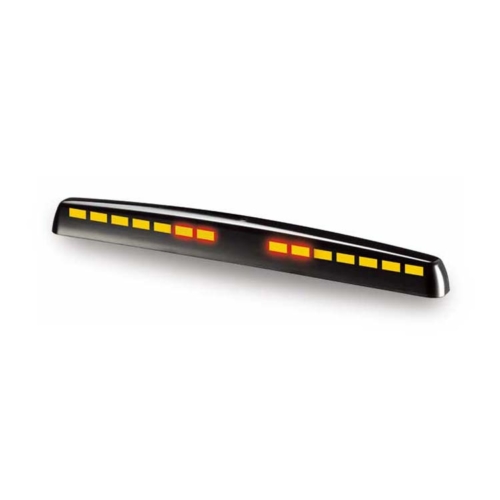

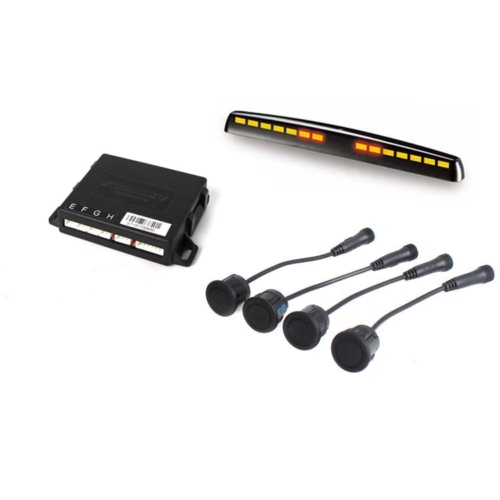

Front parking assistant Steelmate with 4x flush adjustable sensors 16mm, with LED display M5, designed for installation in the front bumper. The system is supplied with automatic identification of the defective sensor, sensitivity setting and adjustable delay off time.

System Description:
•    sensors with fixed assembly to the bumper
•    fast obstacle detection
•    visual and acoustic signalisation (beeps changing frequency) indicates the position of obstacles
•    excellent coverage of the entire area behind the vehicle
•    when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
•    auto detection (automatic identification of the defective sensor)
•    excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
•    mounting hole 16 mm
•    sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if        necessary
•    adjustable sensitivity of the sensors on the control unit (2 levels)
•    with additional ACC wire (pink wire) for stable power supply(optional connection)

Technical parameters:
•    Supply voltage: 12V DC
•    Working power: <2.5 W
•    Detection range: 0.1 ~ 2.5 m
•    Operating temperature: -40°C to + 80°C
•    Buzzer: 70 ~ 90 db
•    Sensor diameter 16mm
•    Sensor wire length 2,2m
