STEELMATE PTS410V11
Parking Assist with LED display

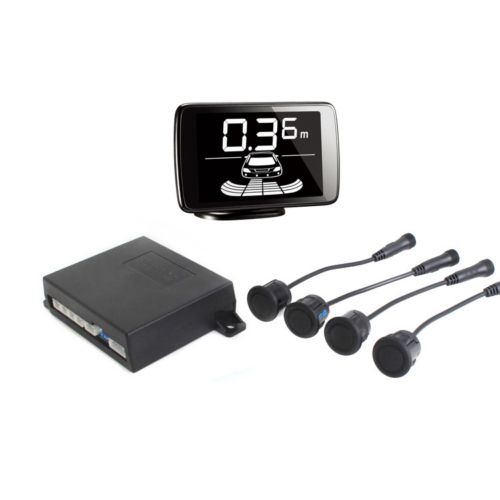

Parking assistant STEELMATE with 4 sensors, designed for installation in the rear bumper, with V11 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook. Set includes 4 pieces of ultrasonic sensors, control unit, display, drill tool and wiring. The unit is designed for vehicles with 12V DC only.

System Description:

  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • sound alarm (beeps changing frequency) indicates the position of obstacles
  • excellent coverage of the entire area behind the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°

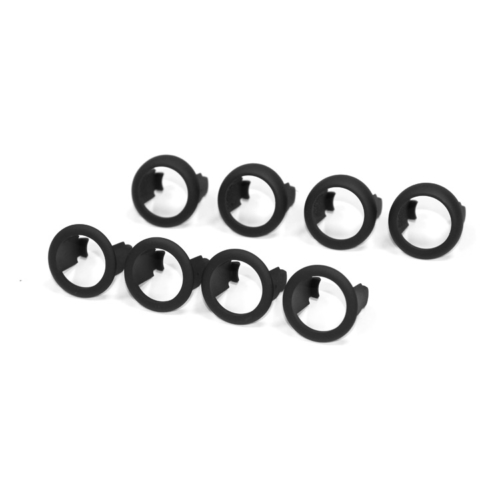

  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm

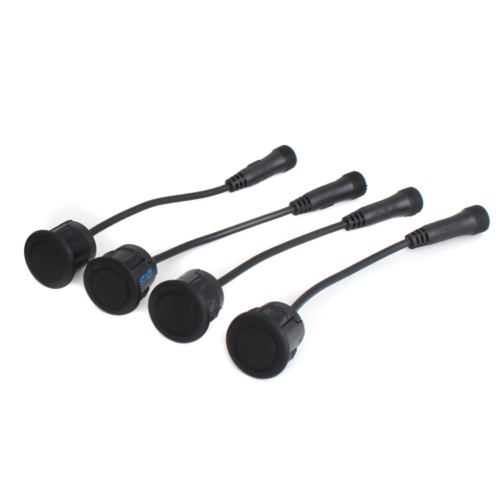

  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle – tow bar, spare wheel, frame, …)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)
